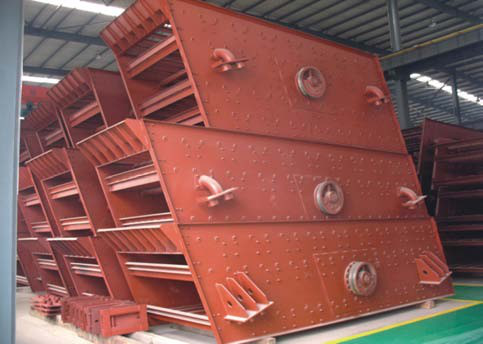

圆振动筛

圆振动筛
Circular Vibrating Screen


用途及适用范围：
圆振动筛是一种多层、高效振动筛，它可以把物料按粒度大小筛分成多种级别范围的产品。广泛应用于矿山、建材、交通、能源、化工等行业的产品筛选和分级。

 Usage and Application
This vibrating screen moves round with multi-layers and high efficiency. It can screen the materials into multiple levels products according to the different material size. It is widely used for grading and screening in the industry of mining, building materials, transportation, energy, and chemical industry, etc.

工作原理：
该机是利用普通电机通过三角皮带带动振动器，使筛体沿激振力方向作周期性往复振动，物料在筛面作圆运动，从而达到筛分目的。

 Working Principle

The motor drives the vibrator via v-belt, which makes the screen do a cyclical reciprocating in the direction of vibrator. The materials are sieved by making round movement in the screen.


性能特点：
1. 物料筛淌线长，筛分规格多；
2. 采用偏心块作为激振力，激振力强；
3. 筛子横梁与筛箱采用高强度螺栓联接，结构简单，维修方便快捷；
4. 采用小振幅、高频率、大倾角结构，筛分效率高、处理量大、使用寿命长、电耗低、噪音小。

Features:
1. Long flowing line and various screening specifications.
2. Using the eccentric blocks to generate strong vibrating force.
3. Screen cross-beam and box are connected by strong bolts, simple structure, convenient in maintenance.
4. Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.

主要技术参数
