砂石设备

圆锥破碎机

发布：admin 浏览：

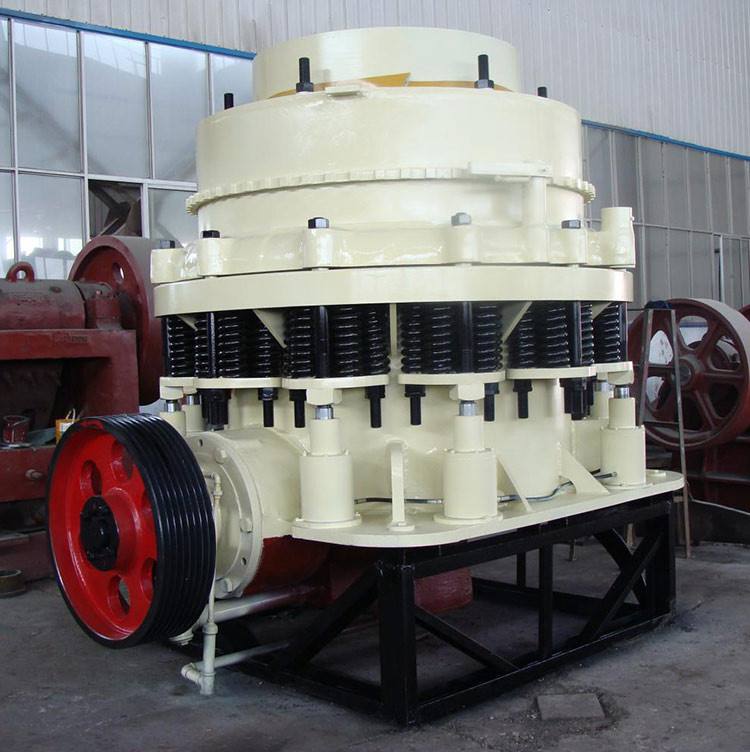

圆锥破碎机
Cone Crusher

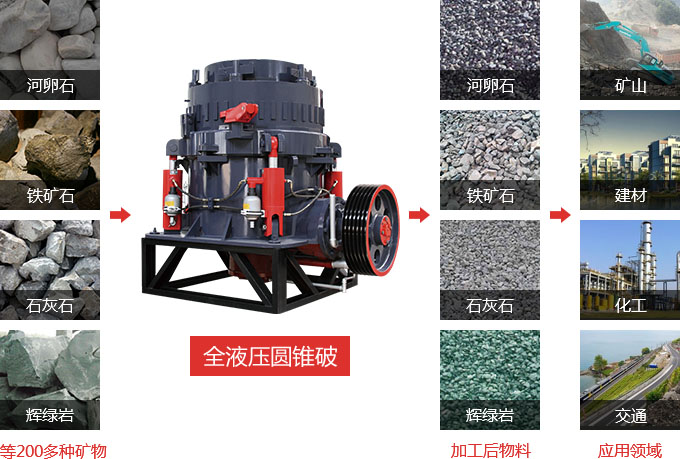

用途及使用范围：
本机广泛应用于冶金、建材、矿业、化工等行业，可对铁矿石、铜矿石、石灰石、石英、花岗岩、砂岩等中等和中等以上硬度的物料进行中、细碎作业。标准型适用于中碎，中型和短头型适用于细碎。

Usage and Application
This machine is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on. It can crush materials with Moh's scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.

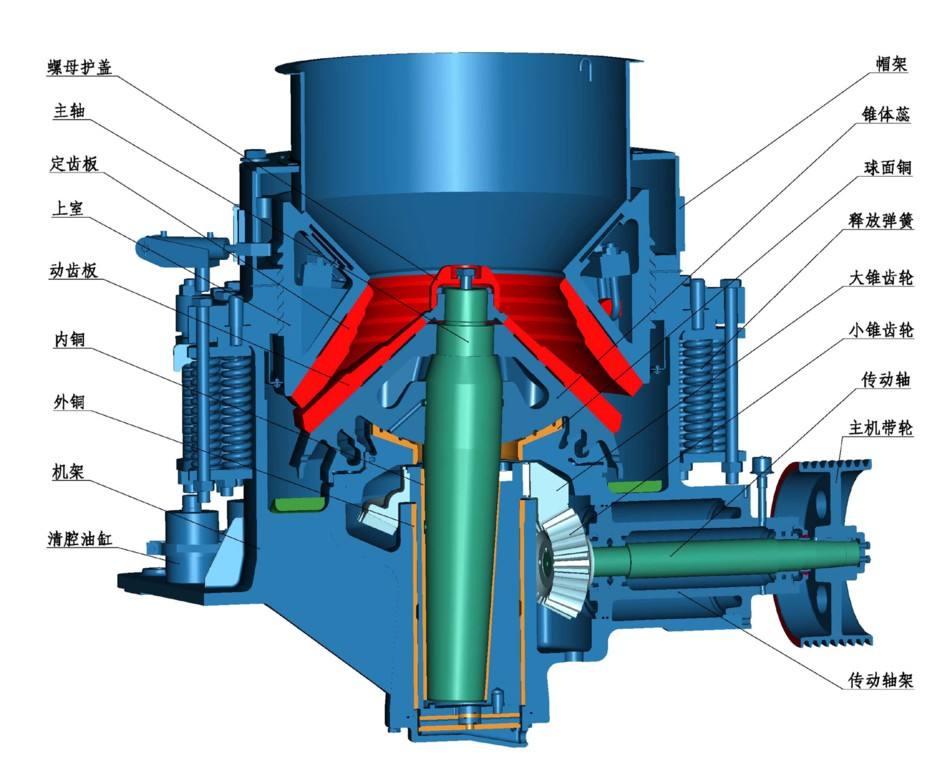

工作原理：
圆锥破碎机工作时，电动机通过弹性联轴器、传动轴和一对锥齿轮带动偏心轴套转动，破碎圆锥轴心线在偏心轴套的迫动下做旋摆运动，使破碎壁和轧臼壁时而靠近，时而远离，矿石在破碎腔内不断地受到挤压、撞击和弯曲而被破碎。

Working Principle
When the cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle close to the bowl liner and far away from the
bowl liner from time to time. The raw materials are pressed, impacted and finally crushed in the crushing cavity.

性能特点：
1. 生产能力大，性能稳定；2. 易损件使用寿命长，运行成本低；3. 稀油站连续供油润滑，减少停机维护时间。
Features:
1. High capacity and good quality; 2. Long life for quick-wear parts, and low investment cost; 3. Dilute petrol stations for continuous lubrication to reduce downtime maintenance time.

主要技术参数

项目 Item 型号 Model	最大进料粒度 Max. Feeding Size(mm)	出料口可调整范围 Adjustable Range of Output Size(mm)	处理能力 Capacity (t/h)	电机功率 Motor Power (kw)	重量Weight (t)	外形尺寸 Overall Dimension (mm)
PYB 600	65	12 - 25	10 - 25	30	5	2234 × 1370 × 1675
PYD 600	35	3 - 13	5 - 20	30	5 . 5	2234 × 1370 × 1675
PYB 900	115	15 - 50	50 - 90	55	11 . 2	2692×1640×2350
PYZ 900	60	5 - 20	20 - 65	55	11 . 2	2692×1640×2350
PYD 900	45	3 - 13	15 - 50	55	11 . 3	2692 × 1640 × 2350
PYB 1200	145	20 - 50	110 - 168	110	24 . 7	2790 × 1878 × 2844
PYZ 1200	100	8 - 25	42 - 135	110	25	2790 × 1878 × 2844
PYD 1200	50	3 - 15	18 - 105	110	25 . 6	2790 × 1878 × 2844
PYB 1750	215	25 - 60	280 - 480	160	50 . 3	3910 × 2894 × 3809
PYZ 1750	185	10 - 30	115 - 320	160	50 . 3	3910 × 2894 × 3809
PYD 1750	85	5 - 15	75 - 230	160	50 . 4	3910 × 2894 × 3809
PYB 2200	300	30 - 60	490 - 800	260 / 280	80	4622 × 3302 × 4470
PYZ 2200	230	10 - 30	200 - 580	260 / 280	80	4622 × 3302 × 4470
PYD 2200	100	5 - 15	120 - 340	260 / 280	81 . 4	4622 × 3302 × 4470

注：技术数据如有变动，恕不另行通知。Note: Any change of technical data shall not be advised additionally.
