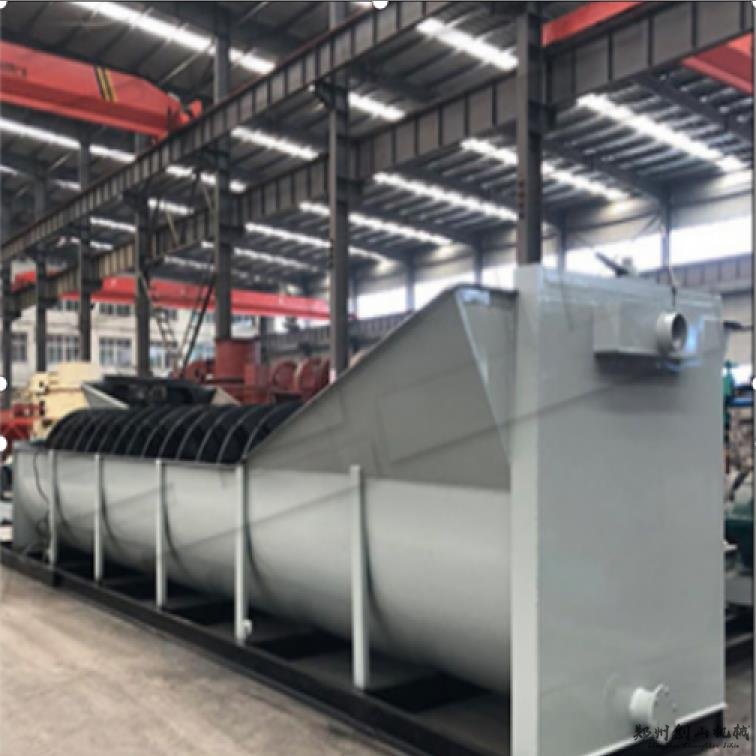

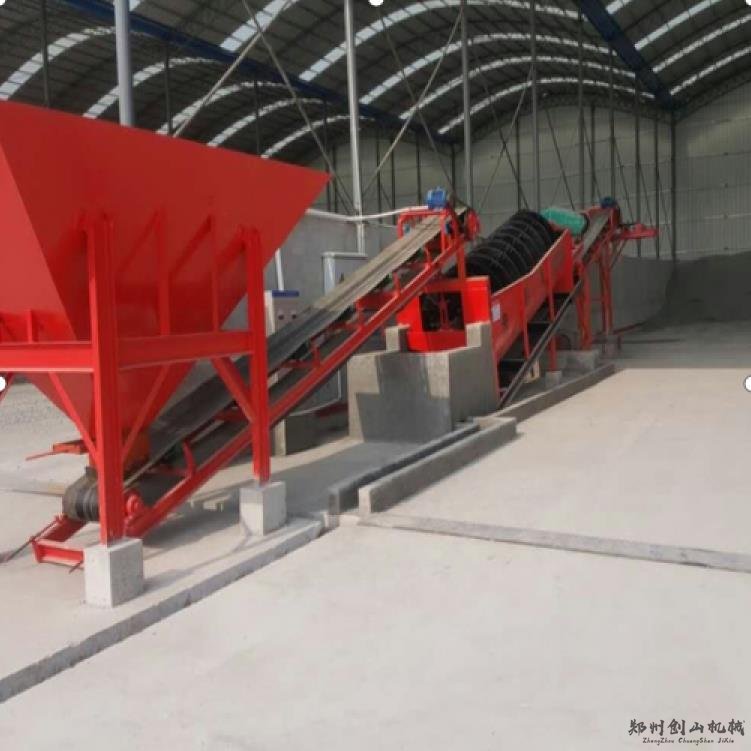

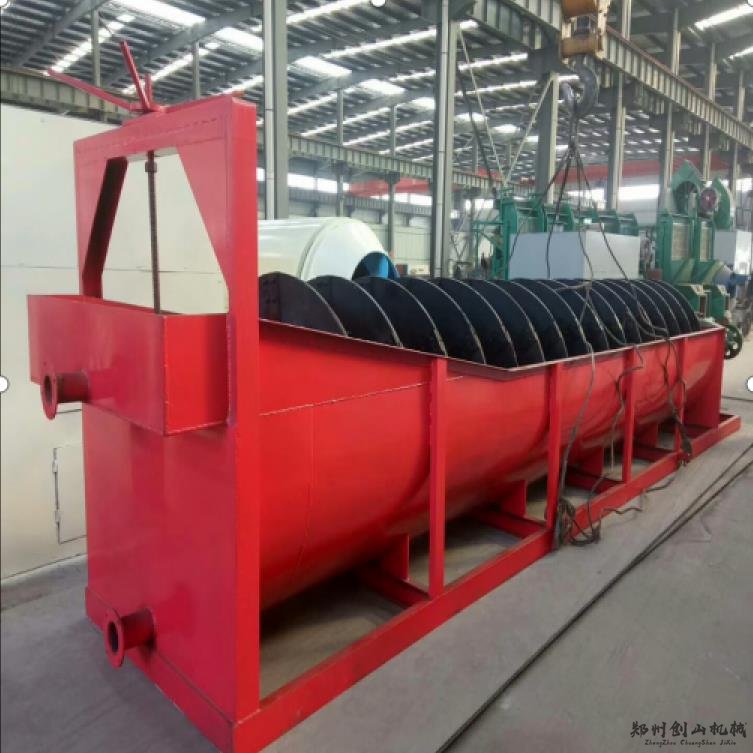

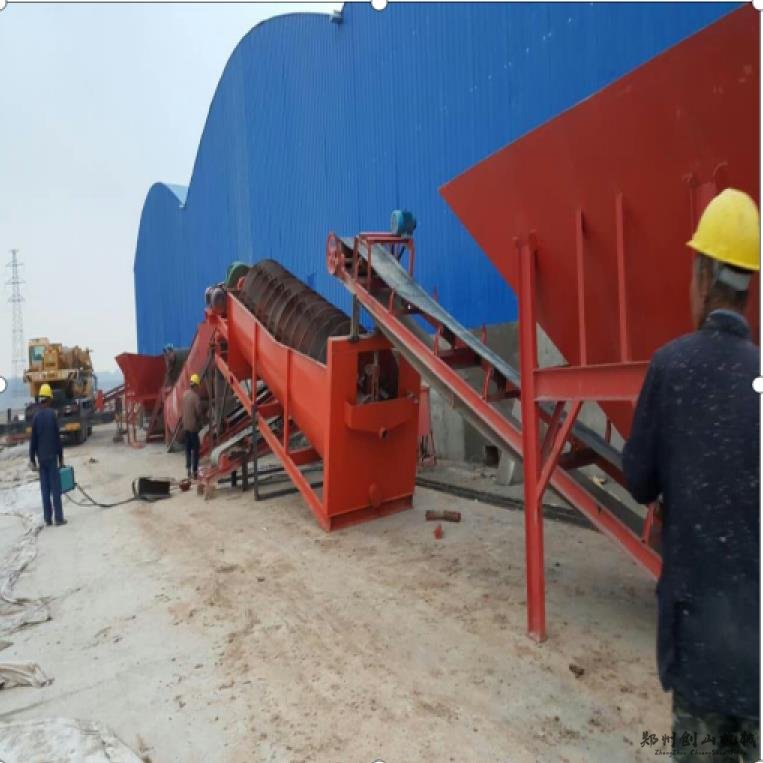

螺旋洗石机
spiral washer
螺旋洗石机用于建筑工地、砂石厂、预制厂及水电工地大量用砂石的脱泥作业。也可用于矿石选别作业。能处理5-40内的物料，可把物料上的泥土、灰粉，分洗成清洁的物料。结构简单，维修容易，洗选效率高等优点。
Spiral stone washing machine is used in desliming operation of a large number of sand and stone used in construction site, sand and gravel factory, prefabrication plant and hydropower construction site. It can also be used for ore dressing. It can process the materials within 5-40, and can separate the soil and ash powder on the materials into clean materials. It has the advantages of simple structure, easy maintenance and high efficiency.
产品特点
1、结构简单，运行稳定。
2、轴承和水、物料分开，避免机器过早因污染生锈而引发的损坏现象。
3、适用于各种各样的工作环境。
4、所洗物料流失少、选洗效率高，可完全满足高等级用料的要求。
5、使用寿命比较长，几乎没有易损件。
6、极少情况下需要维修，因此可大大降低成本。
Product features
1. It has simple structure and stable operation.
2. Bearing is separated from water and material to avoid damage caused by pollution and rust.
3. Suitable for all kinds of working environment.
4. With less material loss and high washing efficiency, it can fully meet the requirements of high grade materials.
5. It has a long service life and almost no wearing parts.
6. In rare cases, maintenance is required, so the cost can be greatly reduced.
适用范围
螺旋洗石机转子采用中心结构，螺旋叶片安装在中心轴上，由减速器连接到中心轴上进行工作。借助固体颗粒的比重不同，因而在液体中沉降的速度不同的原理，进行机械分级的一种设备。
Scope of application
The rotor of the spiral stone washing machine adopts the central structure. The spiral blade is installed on the central shaft and connected to the central shaft by the reducer. With the aid of the principle that the specific gravity of solid particles is different, so the settling speed in the liquid is different, a kind of equipment for mechanical classification.
技术参数
technical parameter
规格型号
|
XS0745
|
XS1050
|
XS1254
|
XS1554
|
XS1575
|
XS1875
|
螺旋直径（mm）
|
750
|
1000
|
1200
|
1500
|
1500
|
1800
|
长度（mm）
|
4500
|
5000
|
5400
|
5400
|
7200
|
7200
|
螺旋转速（r/min）
|
18
|
18
|
16
|
16
|
14
|
12
|
产量（t/h）
|
5-20
|
10-30
|
30-50
|
50-80
|
50-80
|
80-150
|
配套电动机（kw）
|
7.5
|
11
|
15
|
22
|
30
|
37
|
外型尺寸
|
长（m）
|
5-7
|
5-7
|
5-7
|
5-7.5
|
5-9
|
5-9
|
宽（m）
|
0.8
|
1.25
|
1.44
|
1.85
|
1.85
|
2.1
|
高（m）
|
1.5
|
2.2
|
2.4
|
2.8
|
2.8
|
3.2
|
