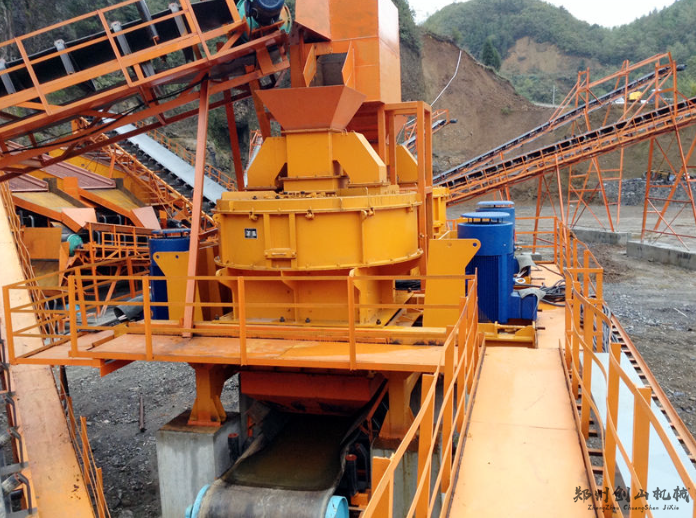

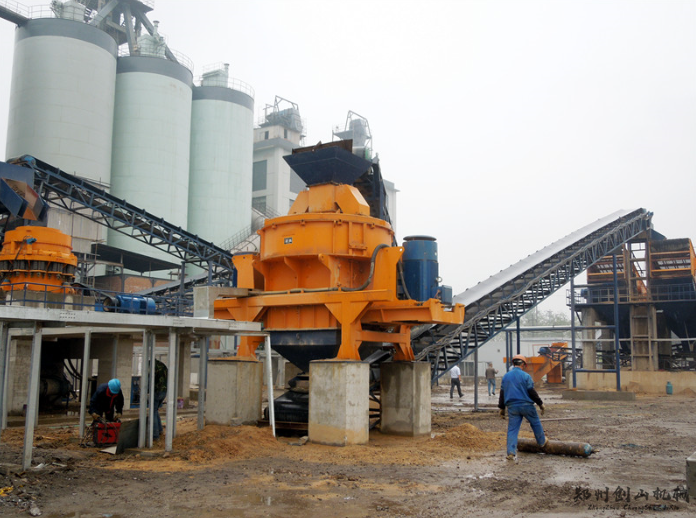

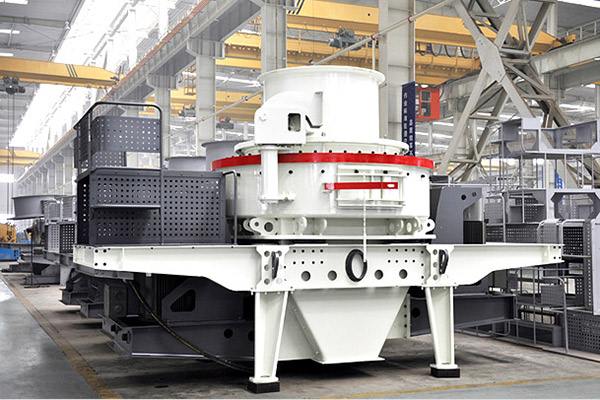

VSI冲击式破碎机

VSI系列冲击式破碎机
VSI Series Vertical Shaft Impact Crusher



用途及适用范围：
VSI系列冲击式破碎机是引进德国技术最新研制生产的具有世界先进水平的高性能制砂设备。该机专为高速公路、高速铁路、高层建筑、市政工程、水电大坝建设、混凝土搅拌站生产优质砂石骨料， 是人工制砂和石料整形领域的首选设备。
 Usage and Application
This machine is advanced and high-efficiency equipment. It is the latest researched results basing on Germany technology. The machine is professional in producing qualified sand and stone for highway, high- speed railway, high building, city project, hydropower
dam constructions, and concrete mixing plant. It is widely used in sand making and stone reshaping industry.


性能特点：

1 .双油泵互补供油， 无油自动停机， 水冷降温， 冬季电机加热启动。
2 .液压开盖装置， 使破碎腔内部件检修拆换方便快捷， 省时省力。
3 .轴承采用国际知名品牌S K F或T I M K E N， 确保运行平稳， 故障率低。
4 .设置过振动报警装置， 如果设备发生不良运转， 可发出警告， 使设备停止工作， 达到保护机器的目的。
5 .独有的进料破碎结构， 可很方便地实现“石打石”和“石打铁”的转换， 既可破碎又可整形。
6 .独特的防尘密封系统， 完全避免外部粉尘进入润滑部位。
7 .最佳的破碎腔物料撞击角度设计， 使物料与易损件的摩擦少， 延长了易损件的使用寿命， 使用成本大大降低。

Features:

1. Oil supplied by two oil pumps; stops automatically if there is no oil; Cooled by water; heating the motor firstly if start the machine in winter.
2. Hydraulic lifting when changing or checking the spare parts which makes it easy and convenient in maintenance.
3. Famous brand SKF or TIMKEN of the bearing makes the machine work well and few problems.
4. Vibrating alarm device; if the crusher works abnormally alarm will sound to make the machine stop working so as to protect the crusher.
5. Special feeding structure; rock on rock and rock on iron in the crusher making the stones to be crushed and reshaped.
6. Unique dustproof seal system, protects the lubrication parts from the dust outside.
7. Perfect design on material bumping angle reduces the friction between raw material and quick-wear parts, prolongs the service time of quick-wear parts and cuts the cost.


主要技术参数

注： 技术数据如有变动， 恕不另行通知。Note: Any change of technical data shall not be advised additionally.
