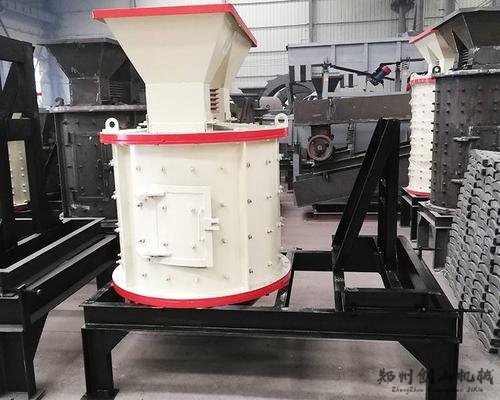

立轴式复合破碎机

立轴式复合破碎机
Vertical shaft compound crusher

产品介绍
立轴式复合破碎机是综合国内外同类破碎机技术研发设计的新型破碎设备，可对多类物料进行细碎，粗磨加工，具有破碎比大、能耗小、节能环保、运转平稳、操作维修方便等优点，对于高炉渣、煤矸石、块煤、砂岩、石膏等物料都能进行破碎加工，立轴式复合破碎机是一种立式的破碎设备，移动、操作更加的方便，体积小，价格相比其他破碎设备更便宜，性价比较高，生产能力较强。

Product introduction

Vertical shaft composite crusher is a new type of crushing equipment which integrates the technology of similar crushers at home and abroad. It can finely crush and rough grind many kinds of materials. It has the advantages of large crushing ratio, small energy consumption, energy saving and environmental protection, stable operation and convenient operation and maintenance. It can crush blast furnace slag, coal gangue, lump coal, sandstone, gypsum and other materials, and vertical shaft composite crusher can be used Crusher is a kind of vertical crushing equipment, which is more convenient to move and operate. It is small in size, cheaper in price compared with other crushing equipment, with high cost performance and strong production capacity.

1、效率高、产品粒度好，同时具有细碎、粗磨功能。
2、应用面广，抗压强度不超过350兆帕的物料，其都能破碎。
3、安全性能高，遇到不可破碎的物料时，保险系统实现保险，保护设备。
4、节能，使用方便，产品成立方体，堆积密度大。
5、先进的耐磨材质，自衬磨损小，维修方便。
6、寿命长，轴承水平布置，寿命长，可以破碎温度高的物料。

Performance advantages
1. High efficiency, good particle size, fine crushing and rough grinding.
2. It can be broken for materials with compressive strength no more than 350 MPa.
3. The safety performance is high, when encountering the unbreakable material, the insurance system realizes the insurance and protects the equipment.
4. Energy saving, easy to use, the product into a cube, high bulk density.
5. Advanced wear-resistant material, self lining wear is small, easy to maintain.
6. Long life, bearing horizontal layout, long life, can crush high temperature materials.

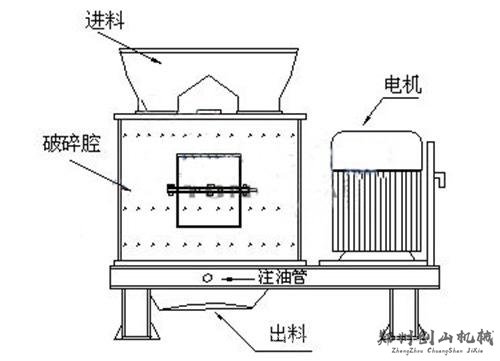

石料由立轴式复合破碎机上部垂直落入机体内，落入设备甩料盘上，离心力的作用下，物料被抛向筒体的内壁，与安装在内壁上的反击板猛烈碰撞，物料之间也发生猛烈的撞击，物料得到破碎或者出现裂纹，之后物料进入锥形转子腔后，下落过程中，经冲压、挤压等作用实现破碎，物料进一步破碎成小颗粒，合格的成品从排料口排出即可。

working principle

The stone materials fall into the machine body vertically from the upper part of the vertical shaft composite crusher and fall onto the material throwing plate of the equipment. Under the action of centrifugal force, the materials are thrown to the inner wall of the cylinder and collide violently with the impact plate installed on the inner wall. The materials are crushed or cracked. After entering the conical rotor cavity, the materials are pressed and squeezed during the falling process The material is further broken into small particles, and the qualified products can be discharged from the discharge port.

技术参数
